Gear Driven Floor Grinding And Polishing Machine with 3 pcs of
Planetary Plates
HW-G4, 500mm (with gear box cover), 5.5hp, is the smaller size of
grinding machine among the planetary design series, very suitable
for small to middle size area. Grinding width is 480mm(real
grinding width), with 3 grinding plates. Planetary plates rotate
towards different directions, which increases the working
efficiency.
Application:
It is for grinding and polishing floors of concrete, terrazzo and
stones.
Old floor removal, restoration and renovation.
Removing Painting, Coating, Expoxy and Glue.
Parameters
| Voltage | 220-240V ,1P/3phrase | 380V-440V, 3phrase |
| Frequency | 50/60HZ | 50/60HZ |
| Current | 15A | 11A |
| Power Output | 5.5hp (4KW) | 5.5hp (4KW) |
| Inverter power | 5.5hp (4KW) | 5.5hp (4KW) |
| Motor speed | 300-1600rpm | 300-1600rpm |
| Grinding width | 500mm | 500mm |
| Disc Dianeter | 200mm*3plate | 200mm*3plate |
| N.W. | 140KG | 140KG |
| Water Tank | 20L | 20L |
| Dimension | 970*500*800mm | 970*500*800mm |
Features
Small size, for grinding and polishing small to medium area.
Pure copper, built-in overload protection, leakage protection,
phase loss protection.
Sunye inverter, one of China's top ten low-voltage inverter brands.
HONWAY uses famous brand-Japan NSK.

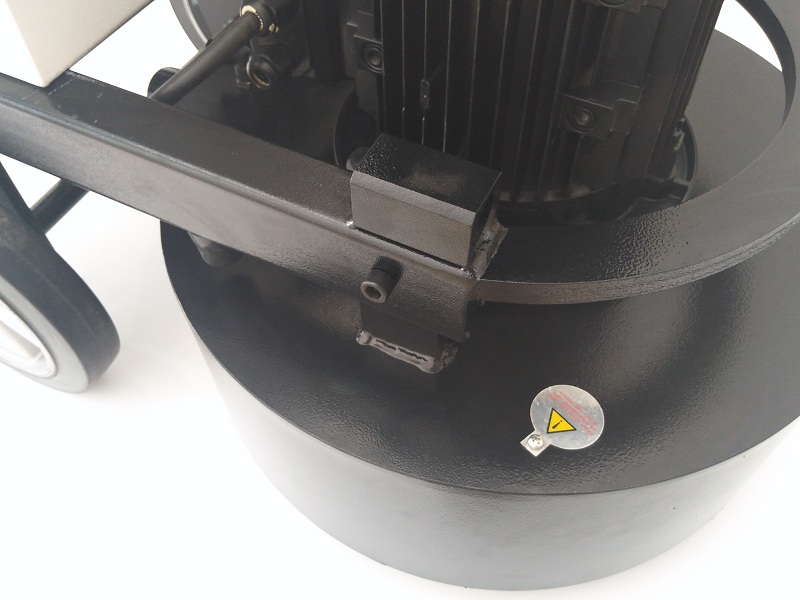

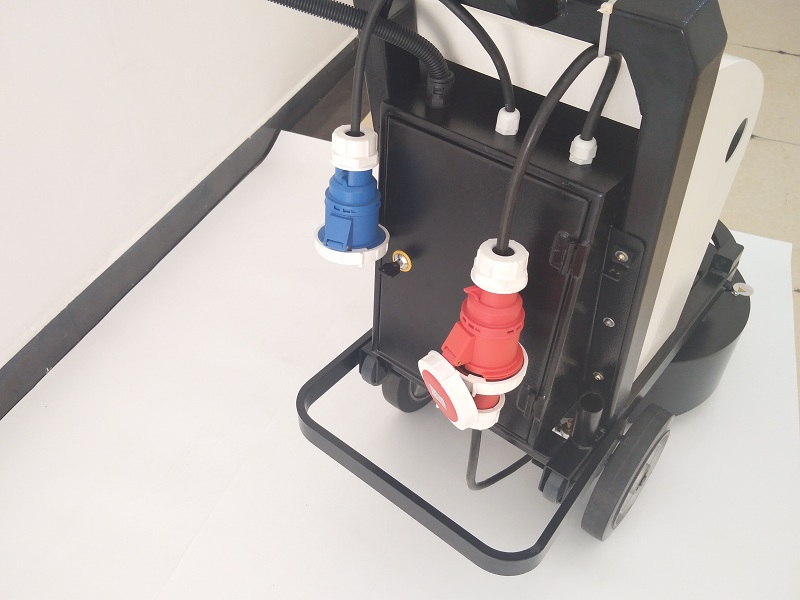

Closer Look
Company introduction
Changsha Honway Machinery Co., Ltd is the Professional manufacturer
for floor scarifying & grinding & polishing machine in China.
1, Well equipped facilities for mechanical process.
2, Strict quality control throughout the stages of production.
3, A team of experienced technicians and workers.
4, All products are CE certified, comply with international
standard.
5, Covering a production area of 1000 square meter.
After Sell Service
- One year of warranty for machine.
- Honway always store the spare parts of old models, in case that the
machine needs repair in future.
- The spare parts can be sent out immediately at any time, delivered
by DHL.
- Honway will service you and your machines for years.
- All gear boxes are tested 48 hours before it leaves factory.
- If the customers visit our factory, we could provide the training
lessons.
- We always supply the spare parts for all the old models.
FAQ
Q: If your machine can be customized?
A: Yes, we can design and produce according to client’s requirements.
Q: What is your payment method?
A: 100% or 50% T/T advance, the balance should be paid before
shipment. (for old customers, we could discuss again)
Q: How about your delivery time?
A: 7~20 days (according to the order quantity)
