Old floor removal, restoration, renovation.
Removing adhesive residues, mastics, epoxies, urethane, paint and
thick coatings.
Parameters:
| Voltage | 220-240V ,1P/3phrase | 380V-440V, 3phrase |
| Frequency | 50/60HZ | 50/60HZ |
| Current | 39.2A | 22.6A |
| Power Output | 15hp(11KW) | 15hp(11KW) |
| Inverter power | 15hp(11KW) | 15hp(11KW) |
| Motor speed | 300-1600rpm | 300-1600rpm |
| Grinding width | 750mm | 750mm |
| Disc Dianeter | 250mm*3plate | 250mm*3plate |
| N.W | 390KG | 390KG |
| Water Tank | 30L | 30L |
| Dimension | 970*750*1050mm | 970*750*1050mm |
Features
1, Adjustable handle 180 degree forward or backward for operator
comfort.
2, Motor and inverter are approved CE, quality assured!
3, Dual rear wheel, independently driven, steering easily.
4, Integrated central control panel design, variable frequency
speed adjustment, the official turn adjustment, simple operation.
Contrast
HONWAY: Gear box is smooth and clean exquisite craftwork.
OTHERS: Gear box is coars even the dregs are left by parts
processing.
HONWAY: Bearing is NSK, made in Japan, famous bearing name.
OTHERS: Chinese bearings, the quality is not as good as that of
Japan brand.
HONWAY: Famous brand TTO seal made in Taiwan.
OTHERS: No brand, not imported seal.
HONWAY: Poly urethane rubber pads, the flexibility is adjusted many
times, for long life.
OTHERS: Common material, the flexibility is not enough, easy to
break.
HONWAY: High strength steel, hard, solid.
OTHERS: Common strength steel, even rust.
HONWAY: High grade gear hobbin high-accuration.
OTHERS: Not high grade gear hobbing, not high-accuration.

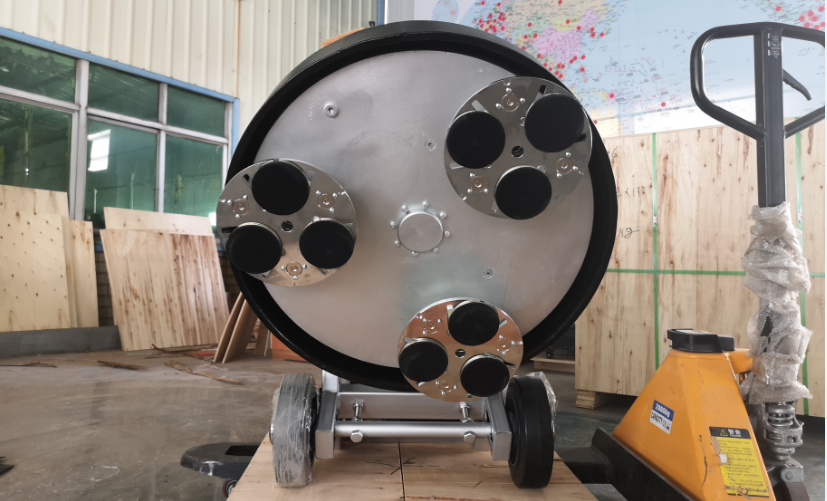

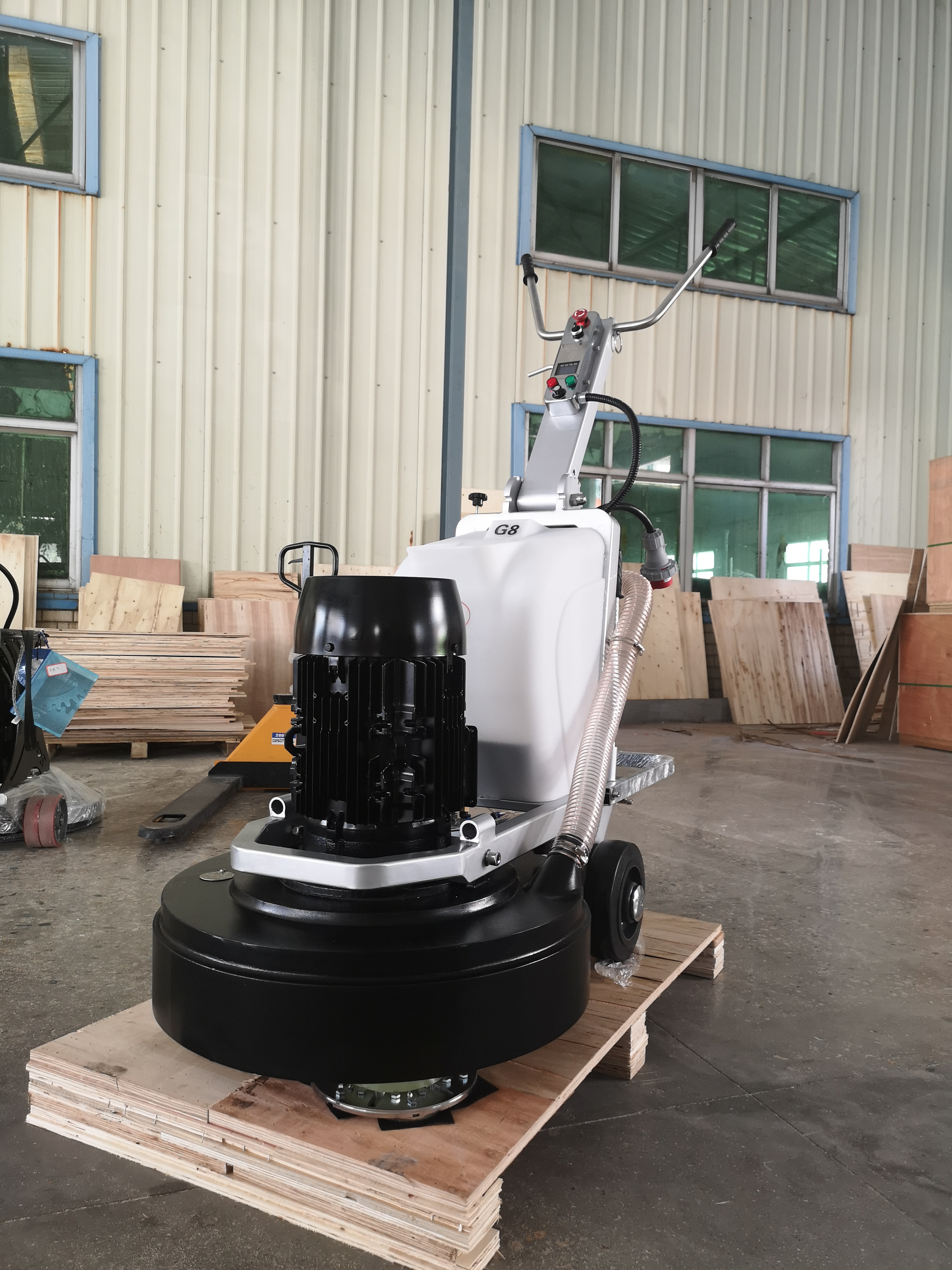

Closer Look
Company introduction
Changsha Honway Machinery Co., Ltd is the professional manufacturer
for floor scarifying & grinding & polishing machine in China. We
are located in Changsha city which is well known as the capital of
construction machinery in China. This city has the abundant supply
of machinery engineers, workers, technique, workcraft, etc. Our
company develops here and builds up as a manufacturing the machines
for ‘Concrete Superflat floor’.
After Sell Service
- One year of warranty for machine.
- We always supply the consumables.
- We always supply the spare parts for all the old models.
- The spare parts can be sent out immediately at any time, delivered
by DHL.
- The CD and operation manual is sent with machine to guide the
installation process works and repair problems.
- All machines are tested, and the testing record will be kept,
before it leaves factory.
- If the customers visit our factory, we could provide the training
lessons.
FAQ
Q: Where is your factory?
A: It is located in Changsha, Hunan province. Welcome you come to our
factory and produce process at any time.
Q: What kind of machine you supply?
A: Concrete grinding machine, concrete scarifying machine, diamond
tools.
Q: What voltage of your machine?
A: 380V three phase,220V three phase and 220V single phase.
Q: What certificates of your machine?
A: 3C CE SGS
