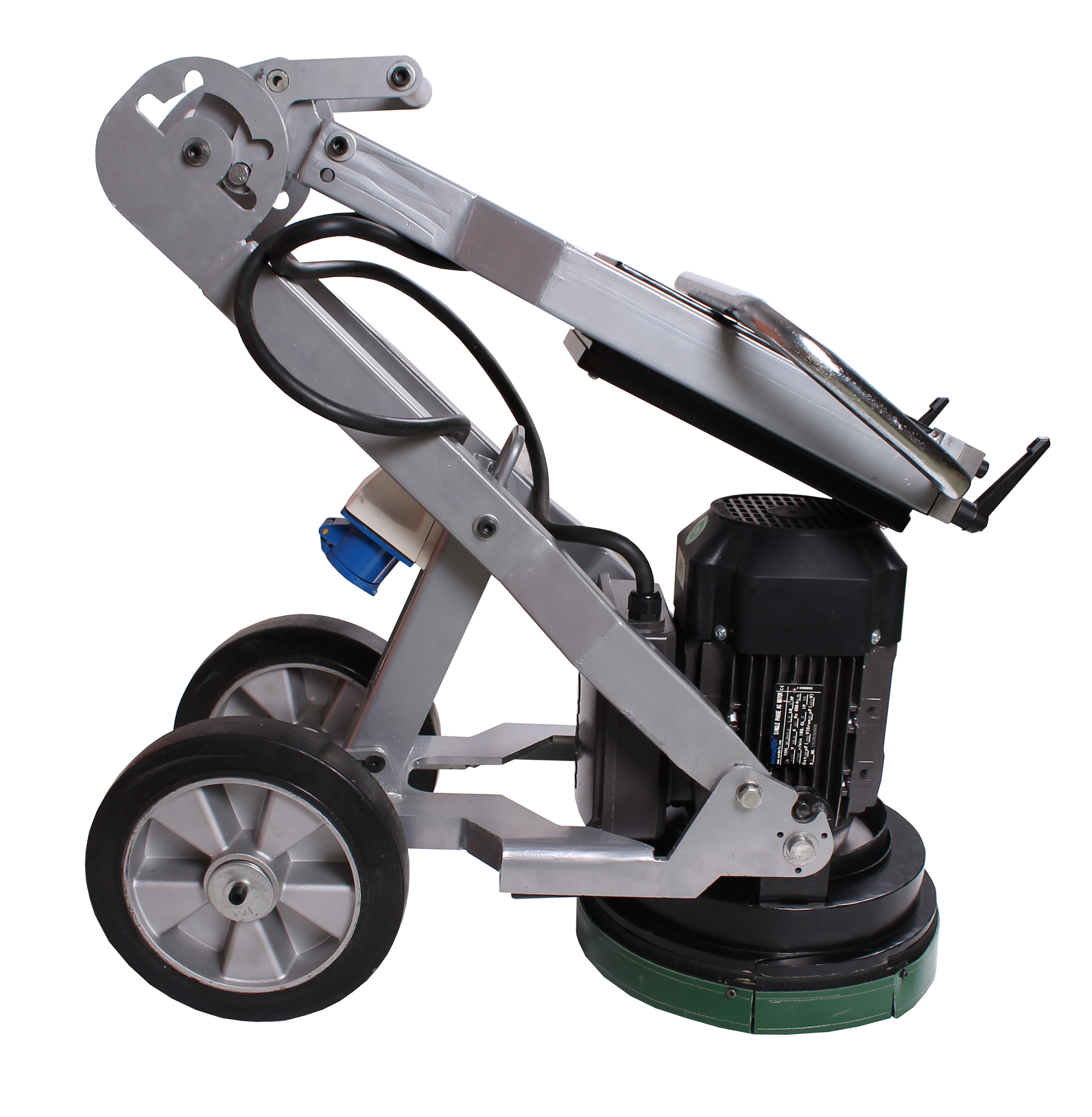

Floor Clean Terrazzo Floor Grinding Machines
The floor grinder and floor edge grinder is in one!
Grinding width 280mm, HW-G1 is a floor edge grinder, it can replace
the angle grinder completely. The ergonomic working posture allows
the worker stand straight behind the machine, reducing fatigue,
backaches, job site injures.
This equipment covers more square feet in less time and less
effect, maximizing comfort and increasing productivity.
Application:
HW-G1 floor edge grinding machine is ideal for removing the paint,
thin set, adhesives, VCT, mastic and epoxy coating on floor.
vedio
Parameters
| Model | HW-G1 |
| Voltage: | 220V 1phrase |
| Power output: | 2.2KW,3hp |
| Motor Brand: | China Winder |
| Frequency: | 50/60HZ |
| Current: | 13A |
| Grinding Width: | 280mm/11” |
| Grinding Pressure: | 41KG/90.2lbs |
| Additional Weight: | N/A |
| Dust Port: | Φ50mm |
| Motor Speed: | 1400rmp |
| Diamond Pad Holder: | 6 Pieces |
| Machine L*W*H: | 1100*420*1000mm |
| Net Weight: | 75KG/165lbs |
Advantages
Grinding floor edge, 2mm’s distance;
Grinding small floor area;
Ergonomic working posture;
Easy for machine maintenance
280mm grinding width, for 220v single phrase;
The floating cover design makes the working site clean.
Closer Look
Our Company
After Sell Service
- One year of warranty for machine.
- Honway always store the spare parts of old models, in case that the
machine needs repair in future.
- The spare parts can be sent out immediately at any time, delivered
by DHL.
- Honway will service you and your machines for years.
- All gear boxes are tested 48 hours before it leaves factory.
- If the customers visit our factory, we could provide the training
lessons.
- We always supply the spare parts for all the old models.
FAQ
Q: If the floor edge grinder could grind floor?
A: Yes, it can; its grinding width is 280mm and its grinding pressure
is 90.2 lbs;
Q:If HW-G1 could grind floor edge and leaves no margin at all?
A: G1 could grind floor edge, but leaves margin of 2mm, which is the
narrowest margin which the floor edge grinder could achieve. It is
impossible for any machine to leave margin 0mm.
Q: If HW-G1 could grind right edge and left edge?
A: Yes. It can; the two sides could grind floor edge;
Q: How about the floating cover of HW-G1?
A: The floating cover follow floor up and down, preventing dust from
entering work site.
