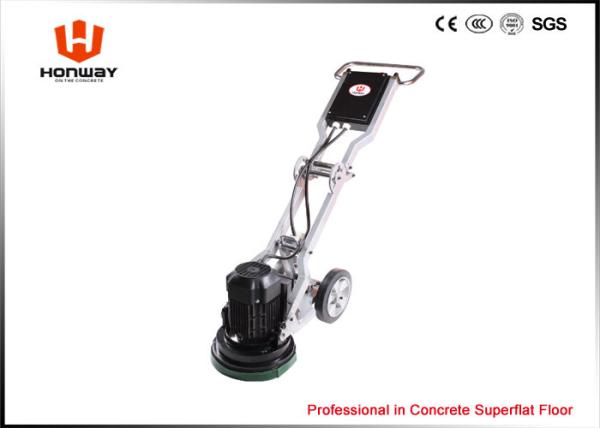

Single Head Marble Floor Grinding Machine Surface For Sell
The floor grinder and floor edge grinder is in one!
HW-G1 combines floor grinder and floor edge grinder into one. The
ergonomically design allows the worker stand straight behind the
machine, reducing fatigue, backaches, job site injures.
This equipment covers more square feet in less time and less
effect, maximizing comfort and increasing productivity.HW-G1 floor
edge grinding machine is ideal for removing the paint, thin set,
adhesives, VCT, mastic and epoxy coating on floor; the flaoting
cover allows the grinder float across the floor surface like ball
on the ice, eliminating the suction lock and capturing most of the
dust.
Parameters
| Model | HW-G1 |
| Voltage: | 220V 1phrase |
| Power output: | 2.2KW,3hp |
| Motor Brand: | China Winder |
| Frequency: | 50/60HZ |
| Current: | 13A |
| Grinding Width: | 280mm/11” |
| Grinding Pressure: | 41KG/90.2lbs |
| Additional Weight: | N/A |
| Dust Port: | Φ50mm |
| Motor Speed: | 1400rmp |
| Diamond Pad Holder: | 6 Pieces |
| Machine L*W*H: | 1100*420*1000mm |
| Net Weight: | 75KG/165lbs |
Features
1, Removable cover lid and brush make edge grinding easily and conveniently-just loose
the screws;
2, The triangle design of stamping part assures the stability and balance of grinding plate; the diamond pad on the plate would not loose balance;
3, Unlike the fixed cover, the floating cover could fellow floor profiles, up and down, eliminating the suction
lock and capturing 99% of dust;
Closer Look
Comparison
After Sell Service
- One year of warranty for machine.
- We always supply the consumables.
- We always supply the spare parts for all the old models.
- The spare parts can be sent out immediately at any time, delivered
by DHL.
- The CD and operation manual is sent with machine to guide the
installation process works and repair problems.
- All machines are tested, and the testing record will be kept,
before it leaves factory.
- If the customers visit our factory, we could provide the training
lessons.
FAQ
Q: If the floor edge grinder could grind floor?
A: Yes, it can; its grinding width is 280mm and its grinding pressure
is 90.2 lbs;
Q: If HW-G1 could grind floor edge and leaves no margin at all?
A: G1 could grind floor edge, but leaves margin of 2mm, which is the
narrowest margin which the floor edge grinder could achieve. It is
impossible for any machine to leave margin 0mm.
Q: If HW-G1 could grind right edge and left edge?
A: Yes. It can; the two sides could grind floor edge;
Q: How about the floating cover of HW-G1?
A: The floating cover follow floor up and down, preventing dust from
entering work site.
