Griding width is 550mm, HW-G6 is the middle size among the
planetary series. It adopts epicyclic gear box, 3 grinding plates with 9 grinding
heads, auto rotation and turnover grinding for smooth operation and
high efficiency. It is suitable to level small area of uneven joints or high
sports of 1/16 to 1/8 inch.
Application:
Grind and polish the concrete, terrazzo, marble, and artificial
floor
Floor surface preparation and renovations
Removing surface imperfections and contaminants
Parameters:
| Voltage | 220-240V ,1P/3phrase | 380V-440V, 3phrase |
| Frequency | 50/60HZ | 50/60HZ |
| Current | 20.3A | 11.7A |
| Power Output | 7.5hp(5.5KW) | 7.5hp(5.5KW) |
| Inverter power | 10hp(7.5KW) | 10hp(7.5KW) |
| Motor speed | 300-1600rpm | 300-1600rpm |
| Grinding width | 550mm | 550mm |
| Disc Dianeter | 230mm*3plate | 230mm*3plate |
| N.W | 190KG | 190KG |
| Water Tank | 30L | 30L |
| Dimension | 970*550*850mm | 970*550*850mm |
Features
Planetary plates work in higer efficiency;
Inverter shows voltage and motor speed;
Aluminum alloy gear box, light but solid;
Automatically adjust balance;

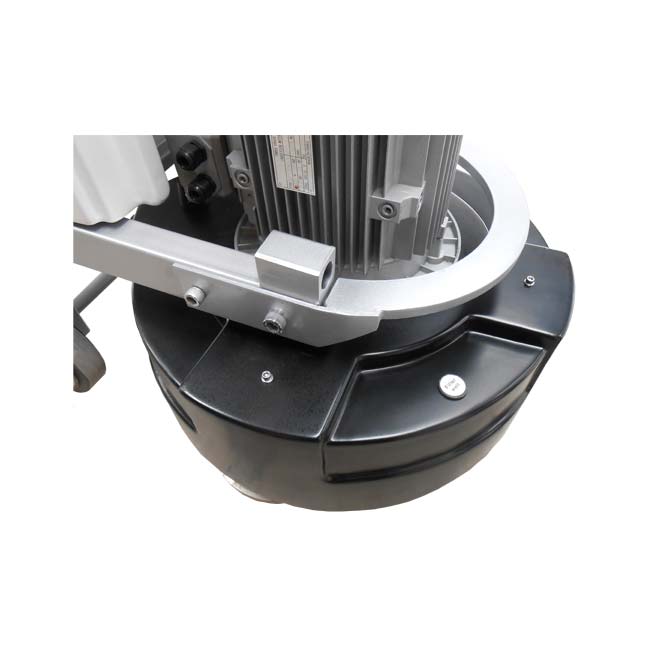

Closer Look
Company introduction
Changsha Honway Machinery Co., Ltd is the professional manufacturer
for floor scarifying & grinding & polishing machine in China. We
are located in Changsha city which is well known as the capital of
construction machinery in China. This city has the abundant supply
of machinery engineers, workers, technique, workcraft, etc. Our
company develops here and builds up as a manufacturing the machines
for ‘Concrete Superflat floor’.
After Sell Service
- One year of warranty for machine.
- We always supply the consumables.
- We always supply the spare parts for all the old models.
- The spare parts can be sent out immediately at any time, delivered
by DHL.
- The CD and operation manual is sent with machine to guide the
installation process works and repair problems.
- All machines are tested, and the testing record will be kept,
before it leaves factory.
- If the customers visit our factory, we could provide the training
lessons.
FAQ
Q: Where is your factory?
A: It is located in Changsha, Hunan province. Welcome you come to our
factory and produce process at any time.
Q: What kind of machine you supply?
A: Concrete grinding machine, concrete scarifying machine, diamond
tools.
Q: What voltage of your machine?
A: 380V three phase,220V three phase and 220V single phase.
Q: What certificates of your machine?
A: 3C CE SGS
