Terrazzo Floor Grinding Machines For Floor Restoration
HW-G10 concrete grinder is a four head planetary machine.
Middle size, for grinding and polishing middle to large area.
The Grinding width is 650mm, 10 hp, for 220v or 380v.
All-gear mechanical transmission improves the mechanical life and
reliability.
Four grinding heads improve the smooth operation of machinery and
flexibility.
Application:
For floor coarse grinding, medium grinding, fine polishing,
crystallizing, preparation, maintenance.
Remove the paint, traffic lines, epoxy and adhesives.
Parameters
| Voltage | 220-240V ,1P/3phrase | 380V-440V, 3phrase |
| Frequency | 50/60HZ | 50/60HZ |
| Current | 26.7A | 15.5A |
| Power Output | 10 hp (7.5KW) | 10 hp (7.5KW) |
| Inverter power | 15 hp (11KW) | 15 hp (11KW) |
| Motor speed | 300-1800rpm | 300-1800rpm |
| Grinding width | 650mm | 650mm |
| Disc Dianeter | 250mm*4plate | 250mm*4plate |
| N.W | 270KG | 270KG |
| Water Tank | 30L | 30L |
| Dimension | 970*650*950mm | 970*650*950mm |
Features
Planetary structure, with four plates.
Gear box is specially manufactured.
Aluminum alloy gear box, light but solid.
Easy and comfortable to operate machine.
Can be connected to industrial vacuum.

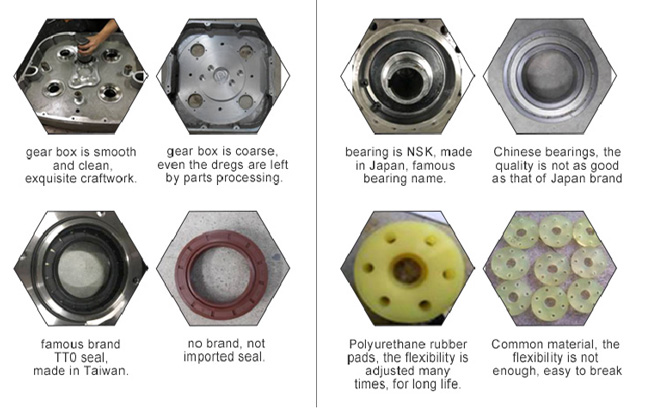

Contrast
HONWAY: Gear box is smooth and clean exquisite craftwork, after
heat treatment, it is strong and not fragile.
Others: Gear box is coarse even the dregs are left by parts
processing.
HONWAY: Bearing is NSK, made in Japan, famous brand.
Others: Chinese bearings, the quality is not as good as that of
Japan brand.
HONWAY: Famous brand TTO seal made in Taiwan.
Others: No brand. not imported seal.
HONWAY: Polyurethane rubber pads, the flexibility is adjusted many
times, for long life.
Others: Common material. The flexibility is not enough, easy to
break.
HONWAY: High strength steel. Hard, solid.
Others: Common strength steel. Even rust.
HONWAY: High grade gear hobbing high-accuration.
Others: Not high grade gear hobbing, not high-accuration.
Closer Look
Company introduction
Changsha Honway Machinery Co., Ltd is the Professional manufacturer
for floor scarifying & grinding & polishing machine in China. Our
company is well equipped with CNC machine for mechanical treatment
and gear hobbing machines for gear processing. We are proud of
having a team of experienced technicians and workers. All of the
products are CE certified and comply with international standard.
The products are already exported to 20 countries and got the good
reputation.
After Sell Service
- One year of warranty for machine.
- In the warranty period, the spare parts are sent by DHL, which is
paid by Honway Company.
- Out of warranty period, the spare parts are sent by DHL, which is
paid by customer.
- Honway always store the spare parts of old models, in case that the
machine needs repair in future.
- All gear boxes are tested 48 hours before it leaves factory.
- We could send the technologists to distributors, for training the
after sell service staff and maintenance issues.
FAQ
Q: If you are a trader company or the real manufacturer?
A: Honway is a real manufacturer. It is located in Changsha, Hunan
province. Welcome you come to our factory and produce process at
any time.
Q: What is your MOQ?
A: 1 set
Q: What is your packaging?
A: We package in Plywood case.
Q: What is your main market?
A: USA, Australia, Asia
