680MM Dry and Wet Floor Grinding And Polishing Machine with
Continous Bag Vacuum Cleaner 55L
HW-G10 is 650mm,10hp, for 220V or 380V. Four plates grinder exerts stronger power to grinding head and
operates more smooth and steady on wavy surface when comparing with
three heads grinder. Four heads machine grinding more evenly and
more easily to leveling the ground, which enable the machine more
stable and easy to control.
Application:
Polishing and grinding concrete, cement, marble, granite, terrazzo
and artificial-stone.
Smoothing or flattening concrete slabs–including curled expansion
joints.
Removing surface imperfections and contaminants.
Parameters
| Voltage | 220-240V ,1P/3phrase | 380V-440V, 3phrase |
| Frequency | 50/60HZ | 50/60HZ |
| Current | 26.7A | 15.5A |
| Power Output | 10hp(7.5KW) | 10hp(7.5KW) |
| Inverter power | 15hp(11KW) | 15hp(11KW) |
| Motor speed | 300-1800rpm | 300-1800rpm |
| Grinding width | 650mm | 650mm |
| Disc Dianeter | 250mm*4plate | 250mm*4plate |
| N.W | 270KG | 270KG |
| Water Tank | 30L | 30L |
| Dimension | 970*650*950mm | 970*650*950mm |
Features
1, Configure the IP67 waterproof, dustproof power supply plug more
secure.
2, Large capacity water tank with spill-proof water inlet design, easy
for water filling and tank cleaning.

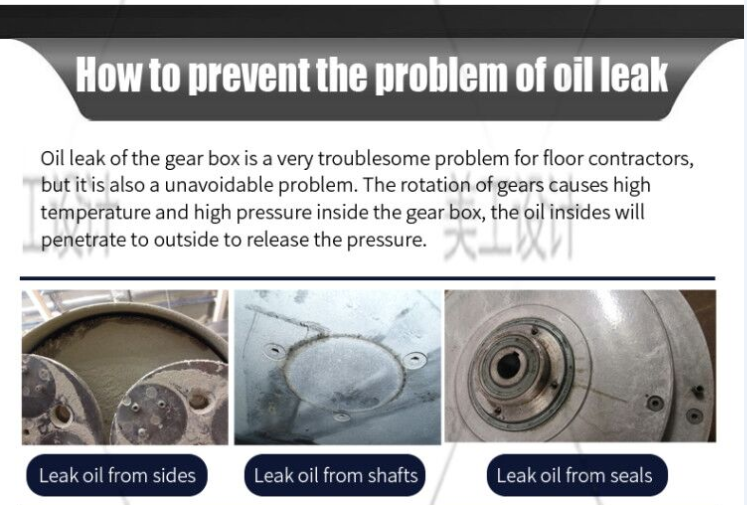

3, Adopting nice imported sealing firmware, the oil in the machine
won’t leak.
4, Integrated central control panel design, variable frequency speed
adjustment, the official turn adjustment, simple operation.
Contrast
HONWAY: The gearbox and the cover are made of high-strength aluminum alloy,
mold and casting.
OTHERS: Gear box is coars even the dregs are left by parts
processing.
HONWAY: Bearing is NSK, famous bearing brand in Japan.
OTHERS: Chinese bearings, the quality is not as good as that of
Japan brand.

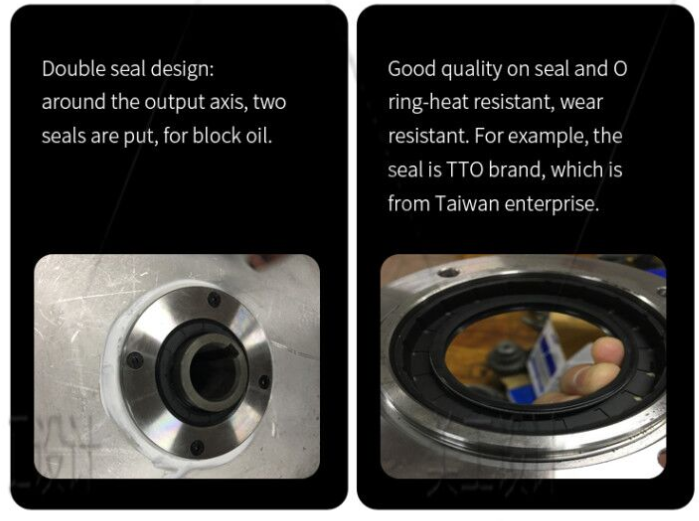

HONWAY: Famous brand TTO rubber skeleton oil seal made in Taiwan.
OTHERS: No brand, not imported seal.
HONWAY: Pure copper motor, built-in overload protection, leakage protection, phase loss protection.
OTHERS: Not pure copper motor, safety is not guaranteed.
HONWAY: Sunye inverter, one of China's top ten low-voltage inverter brands.
OTHERS: Common inverter, not famous brand.
HONWAY: China famous brand, pure copper wire core; good performance in
electrical conductivity, load capacity, waterproof.
OTHERS: No brand. Not enough length and enough size of the wire ensures electricity safety.
Company introduction
Changsha Honway Machinery Co., Ltd is the professional manufacturer
for floor scarifying & grinding & polishing machine in China. We
are located in Changsha city which is well known as the capital of
construction machinery in China. This city has the abundant supply
of machinery engineers, workers, technique, workcraft, etc. Our
company develops here and builds up as a manufacturing the machines
for ‘Concrete Superflat floor’.
After Sell Service
- One year of warranty for machine.
- We always supply the consumables.
- We always supply the spare parts for all the old models.
- The spare parts can be sent out immediately at any time, delivered
by DHL.
- The CD and operation manual is sent with machine to guide the
installation process works and repair problems.
- All machines are tested, and the testing record will be kept,
before it leaves factory.
- If the customers visit our factory, we could provide the training
lessons.
FAQ
Q: Where is your factory?
A: It is located in Changsha, Hunan province. Welcome you come to our
factory and produce process at any time.
Q: What kind of machine you supply?
A: Concrete grinding machine, concrete scarifying machine, diamond
tools.
Q: What voltage of your machine?
A: 380V three phase,220V three phase and 220V single phase.
Q: What certificates of your machine?
A: 3C CE SGS
