500MM 4KW Motor Floor Grinding and Polishing Machine Low Noise
Strong Grinding
HW-G4, grinding width 480mm, 5.5hp motor, 7.5hp inverter (220V),
variable motor speed 0-1600rpm. It is planetary gear driven design.
The planetary gearbox has three output axis, and each of them has a
grinding disc. So it works more powerful and effective.
Application:
Grinding and polishing on surfaces covering concrete, epoxy, stone,
marble, granite, terrazzo.
Old floor removal, restoration, renovation.
Parameters
| Voltage | 220-240V ,1P/3phrase | 380V-440V, 3phrase |
| Frequency | 50/60HZ | 50/60HZ |
| Current | 15A | 11A |
| Power Output | 5.5hp(4KW) | 5.5hp(4KW) |
| Inverter power | 5.5hp(4KW) | 5.5hp(4KW) |
| Motor speed | 300-1600rpm | 300-1600rpm |

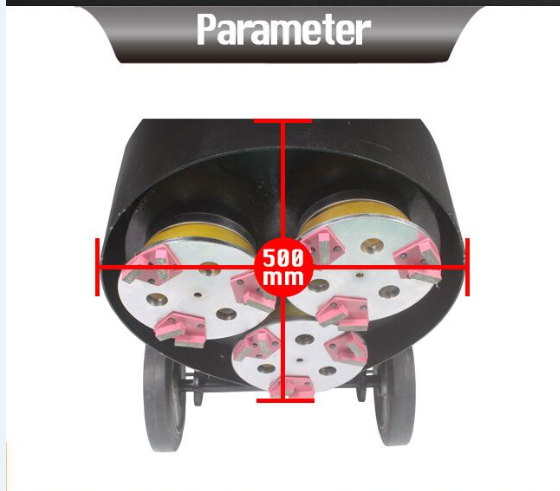

| Grinding width | 500mm | 500mm |
| Disc Dianeter | 200mm*3plate | 200mm*3plate |
| N.W | 140KG | 140KG |
| Water Tank | 20L | 20L |
| Dimension | 970*500*800mm | 970*500*800mm |
Features
The gearbox and the cover are made of high-strength aluminum alloy,
mold and casting.
Equipped with vacuum port (50mm) and the water tank, for dry and
wet grinding.
Design of double oil seal around the output axis.
Honway oil seal is Taiwan TTO rubber skeleton oil seal.
Company introduction
Changsha Honway Machinery Co., Ltd is the Professional manufacturer
for floor scarifying & grinding & polishing machine in China.
1, Well equipped facilities for mechanical process.
2, Strict quality control throughout the stages of production.
3, A team of experienced technicians and workers.
4, All products are CE certified, comply with international
standard.
5, Covering a production area of 1000 square meter.
After Sell Service
- One year of warranty for machine.
- Honway always store the spare parts of old models, in case that the
machine needs repair in future.
- The spare parts can be sent out immediately at any time, delivered
by DHL.
- Honway will service you and your machines for years.
- All gear boxes are tested 48 hours before it leaves factory.
- If the customers visit our factory, we could provide the training
lessons.
- We always supply the spare parts for all the old models.
FAQ
Q: If your machine can be customized?
A: Yes, we can design and produce according to client’s requirements.
Q: What is your payment method?
A: 100% or 50% T/T advance, the balance should be paid before
shipment. (for old customers, we could discuss again)
Q: How about your delivery time?
A: 7~20 days (according to the order quantity)
