380V Residential Concrete Floor Grinding Machine with Redi Lock
Diamond Pads
Epoxy floor grinder has the high motor rotation rate (1440rpm), 4kw
motor, grinding width 400. The grinding plate is directly connected
to the motor, so it can work effectively and continuously for many
hours. It is called '' concrete killer''.
The overload protect elements-rely and breaker, are all Schneider.
In the electrical box, there are the fuses; The wire connections
insides the electrical box are made and fixed by professional
manufacturer (not by Honway factory). All these are for electrical
safety and avoid the leakage and phrase protection.
Single head floor grinder, with 5.5hp motor
HW-G2 is a single head grinder with the high motor rate, for 380v,
three phrase; It is usually used for coarse grinding instead of the
gear or belt driven floor grinding machines, as th latter is too
heavy for it sometimes; in case that the gear or belt driven floor
grinder is hit by the rebar underneath the floor,(which happens
very often), HW-G2 is good choice for it; even it is hit, the
maintenance is much easier than the big floor grinding machine;
it is a perfect floor preparation machine for removing floor
coverings, floor coatings, trowel marks and faults in the concrete
floor; it can be folded which is convenient for transportation and
storage;
Product Details
Parameter
Model | HW-G2 |
Voltage: | 380v, three phrase |
Power output | 4KW,5.5HP |
Frequency: | 50/60HZ |
Current: | 7.6A |
Grinding Wldth: | 400mm/15.7" |
Grinding Pressure: | 69KG/152lbs |
Additlonal Welght: | N/A |
Dast Port: | Φ50 |
Motor Speed: | 1400rmp |
Dianond Pad Holder: | 6/8Pieces |
L*W*H: | 760*420*1200 |
Net Weight: | 95KG/205lbs |
The floor after G2 grinds
Product Application:
Packing Details
About US
Changsha Honway Machinery Co., Ltd is the professional manufacturer
for concrete floor scarifying & grinding & polishing machine in
China.Honway is well equipped with CNC machine for mechanical
treatment and Sweden gear hobbing machines for gear processing. She
is proud of having a team of experienced technicians and workers.
All of the products are CE certified and comply with international
standard. The products are already exported to 20 countries and got
the good reputation.
The advantage of our company:
1, Well equipped facilities for mechanical process.
2, Strict quality control throughout the stages of production.
3, A team of experienced technicians and workers.
4, All products are CE certified, comply with international
standard.
5, Covering a production area of 1000 square meter.
Certification
It is certifcated by NB(Notify Party) of European Union.NB No.is
1282.
CE certification No.is 1N160511.CHMUS09
FAQs
Q:What voltage the floor grinder HW-G2?
A: It is only for 380v,50/60hz.
Q: How HW-G2 is driven?
A: HW-G2 is driven by the motor;
Q: How about the floating cover of HW-G2?
A: The floating cover follow floor up and down, preventing dust
from entering work site.
Q: If the machine vibrates when it works?

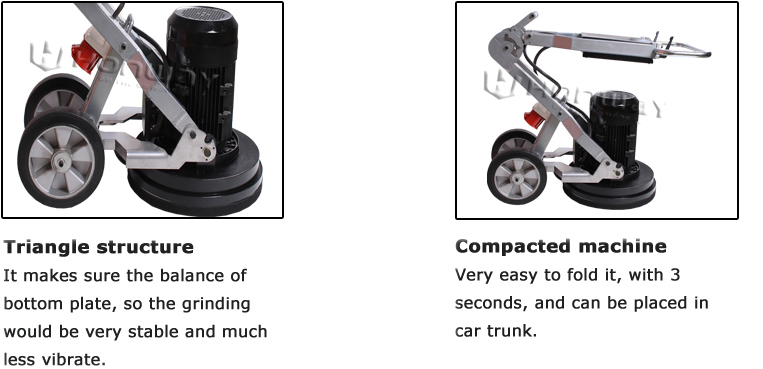

A: HW-G1 has a chassis which is made of triangle structure. It is
more stable and less anti-vibrate. Besides, the machine frame is
made of steel tubes, not steel plate, so it could support machine
more and decrease vibration.
Q: How about the electrical elements of HW-G2?
A: The electrical elements are Schneider relay and contactor, world
brand. Honway pays attention to the electrical safety, so all the
eletrical connections and details are greatly assured.
Q: If HW-G1 could be attached to vacuum?
A: Yes, it can; the diameter of port is 50mm, common criteria.
