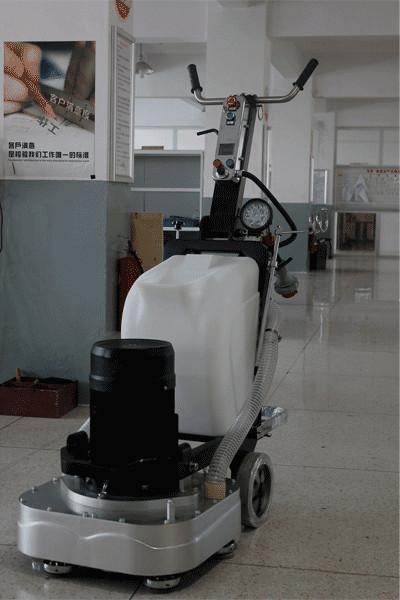

HW-G5, 10hp, grinding width 600mm, 4 grinding plates, 12 pieces of
diamond tools. With the magnetic disk and Velcro, It is very easy
and shift to change diamond tool. The design of square disc plate
could 100% touch wall and grind corner.
More advantages of new HW-G5
1. Using a stable transmission device, the front fuselage is
connected to gear box directly, so the motor power can be 100%
transmitted. When motor runs in low speed, the transmission device
enhances the torque of the rotating shaft, which improves the
grinding and polishing effect in different floors.
2. Unibody gear box, no gear box ‘s cover anymore, the weight of
the gear box increases, so the weight of machine also increases,
Which helps improving the of grinding efficiency.
Unibody gear box, made of pure aluminum alloy casting, good heat
radiation.
The aluminum alloy casting gear box, good for heat radiation, not
easily deformed. It is made in our CNC processing center, one time
processing forming, which reduces the processing error and increase
the lifetime of gear box.
3. Motor and gear box are directly connected, reducing the
machine’s vibration, noise, at the same time, increases the
flatness after grinding.
Parameters:
| Voltage | 220-240V ,1P/3phrase | 380V-440V, 3phrase |
| Frequency | 50/60HZ | 50/60HZ |
| Current | 27.0A | 15.6A |
| Power Output | 10hp(7.5KW) | 10hp(7.5KW) |
| Inverter power | 10hp(7.5KW) | 10hp(7.5KW) |
| Motor speed | 300-1800rpm | 300-1800rpm |
| Grinding width | 600mm | 600mm |
| Disc Dianeter | 320mm*4plate | 320mm*4plate |
| N.W | 265KG | 265KG |
| Water Tank | 30L | 30L |
| Dimension | 930*600*950mm | 930*600*950mm |
Closer Look
Company introduction
Changsha Honway Machinery Co., Ltd is the Professional manufacturer
for floor scarifying & grinding & polishing machine in China.
1, Well equipped facilities for mechanical process.
2, Strict quality control throughout the stages of production.
3, A team of experienced technicians and workers.
4, All products are CE certified, comply with international
standard.
5, Covering a production area of 1000 square meter.
After Sell Service
- One year of warranty for machine.
- Honway always store the spare parts of old models, in case that the
machine needs repair in future.
- The spare parts can be sent out immediately at any time, delivered
by DHL.
- Honway will service you and your machines for years.
- All gear boxes are tested 48 hours before it leaves factory.
- If the customers visit our factory, we could provide the training
lessons.
- We always supply the spare parts for all the old models.
FAQ
Q: If your machine can be customized?
A: Yes, we can design and produce according to client’s requirements.
Q: What is your payment method?
A: 100% or 50% T/T advance, the balance should be paid before
shipment. (for old customers, we could discuss again)
Q: How about your delivery time?
A: 7~20 days (according to the order quantity)
