Single Plate Concrete Floor Grinding Machine for colored Floor
HW-G2
HW-G2 is a single head grinder with the high motor rate, for 380v,
three phrase; it is a perfect floor grinding equipment of floor
coverings, floor coatings, trowel marks and faults in the concrete
floor; the machine can be folded which is convenient for
transportation and storage;
Features of HONWAY HW-G2
Dust-free operation thanks to floating cover;
Single head grinding plate increase productivity and grinding
performance;
Excellent stability and balance of machine because of triangle
structure, which also help grinding stability;
Schneider electrical element guarantees electrical safety;
Compacted, very easy for transportation and set-up;
Maximum durability and load capacity due to the robust stamping
parts
Quick change of diamond pad, just with a hammer;
Ergonomic working posture
Easy for machine maintenance
Product Details:
Triangle structure It makes sure the balance of bottom plate, so the grinding would
be very stable and much less vibrate.
Compacted machine Very easy to fold it, with 3 seconds, and can be placed in car
trunk.
Encapsulated wheels Aluminum alloy wheels and PU, one wheel affords 130kg, shock
absorbing, wear resisting.
Strong Stamping part The stamping part is steel tube, more solid than steel plate.
Schneider electric Schneider electric and Delixi buttons assure the electrical
safety.
Annular handle Annular handle, can be adjusted with the different angle.
Product Details
Parameter
Model | HW-G2 |
Voltage: | 380v, three phrase |
Power output | 4KW,5.5HP |
Frequency: | 50/60HZ |
Current: | 7.6A |
Grinding Wldth: | 400mm/15.7" |
Grinding Pressure: | 69KG/152lbs |
Additlonal Welght: | N/A |
Dast Port: | Φ50 |
Motor Speed: | 1400rmp |
Dianond Pad Holder: | 6/8Pieces |
L*W*H: | 760*420*1200 |
Net Weight: | 95KG/205lbs |

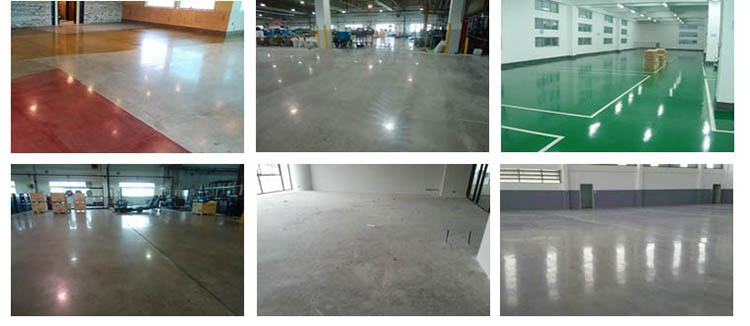

The floor after G2 grinds
Product Application:
Packing Details
Our factory
Changsha Honway Machinery Co., Ltd is the professional manufacturer
for concrete floor scarifying & grinding & polishing machine in
China.Honway is well equipped with CNC machine for mechanical
treatment and Sweden gear hobbing machines for gear processing. She is proud of having a
team of experienced technicians and workers. All of the products
are CE certified and comply with international standard. The
products are already exported to 20 countries and got the good
reputation.
Delivery
For sea shipping, please provide the name of seaport; shipping time
is about 15-40 days; Goods needs to be collected in seaport; it is
slow, but most economic transportaion.
For air shipping, please provide the name of airport; shipping time
is about 4-5 days after aboarding. Goods needs to be collected in
airport; it is quick, but expensive;
For Express like DHL, TNT, FEDEX, please provide the door address;
Shipping time is about 3-7 days after Express company get the
goods; goods arrives at door, no need for collect. it is most
expensive, but quickest and reach door directly.
Payment
Certification
It is certifcated by NB(Notify Party) of European Union.NB No.is
1282.
CE certification No.is 1N160511.CHMUS09
FAQs
Q:What voltage the floor grinder HW-G2?
A: It is only for 380v,50/60hz.
Q: How HW-G2 is driven?
A: HW-G2 is driven by the motor;
Q: How about the floating cover of HW-G2?
A: The floating cover follow floor up and down, preventing dust
from entering work site.
Q: If the machine vibrates when it works?
A: HW-G1 has a chassis which is made of triangle structure. It is
more stable and less anti-vibrate. Besides, the machine frame is
made of steel tubes, not steel plate, so it could support machine
more and decrease vibration.
Q: How about the electrical elements of HW-G2?
A: The electrical elements are Schneider relay and contactor, world
brand. Honway pays attention to the electrical safety, so all the
eletrical connections and details are greatly assured.
Q: If HW-G1 could be attached to vacuum?
A: Yes, it can; the diameter of port is 50mm, common criteria.
