HW-G5, 10hp, grinding width 600mm, 4 grinding plates, 12 pieces of
diamond tools. With the magnetic disk and Velcro, It is very easy
and shift to change diamond tool. The design of square disc plate
could 100% touch wall and grind corner.
HONWAY square plates would not leave trace on floor, as I know some
machines like G5 usually leaves trace on floor, which is caused by
the design problem, as the disc plate can't cross very well.G5
would have not this problem.
Application:
Levels uneven concrete surfaces and removes paint, epoxy and
adhesives.
Smoothing or flattening concrete slabs and the curled expansion
joints.
Parameters:
| Voltage | 220-240V ,1P/3phrase | 380V-440V, 3phrase |
| Frequency | 50/60HZ | 50/60HZ |
| Current | 27.0A | 15.6A |
| Power Output | 10hp(7.5KW) | 10hp(7.5KW) |
| Inverter power | 10hp(7.5KW) | 10hp(7.5KW) |
| Motor speed | 300-1800rpm | 300-1800rpm |
| Grinding width | 600mm | 600mm |
| Disc Dianeter | 320mm*4plate | 320mm*4plate |
| N.W | 265KG | 265KG |
| Water Tank | 30L | 30L |
| Dimension | 930*600*950mm | 930*600*950mm |
Features:
1. Machine weight 265KG, easy operation, even ladies also can
operate, effectively reducing the cost of labors. In addition to
the design of the extended lever, a person can complete finish the
replacement of the pads.
2. Working area now is 600MM, the similar products in the market
are commonly 580mm. Wider grinding area increased productivity
while also saving labor cost.

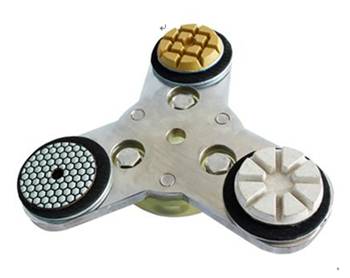

3. Four discs, 12 grinding head, cross-running, grinding without
leaving the gap. The attachment methods of diamond tools are as
below:
Attach the magnet convert block:
Floor disc:
Closer Look
After Sell Service
- One year of warranty for machine.
- Honway always store the spare parts of old models, in case that the
machine needs repair in future.
- The spare parts can be sent out immediately at any time, delivered
by DHL.
- Honway will service you and your machines for years.
- All gear boxes are tested 48 hours before it leaves factory.
- If the customers visit our factory, we could provide the training
lessons.
- We always supply the spare parts for all the old models.
