12 Heads Four Grinding Plate Concrete Floor Grinding Machine
The vibration when the machine works; 4 heads works very smooth and
very easily, even a 10 years old child could operate it;
Parameters
| Voltage | 220-240V ,1P/3phrase | 380V-440V, 3phrase |
| Frequency | 50/60HZ | 50/60HZ |
| Current | 26.7A | 15.5A |
| Power Output | 10hp(7.5KW) | 10hp(7.5KW) |
| Inverter power | 15hp(11KW) | 15hp(11KW) |
| Motor speed | 300-1800rpm | 300-1800rpm |
| Grinding width | 650mm | 650mm |
| Disc Dianeter | 250mm*4plate | 250mm*4plate |
| N.W | 270KG | 270KG |
| Water Tank | 30L | 30L |
| Dimension | 970*650*950mm | 970*650*950mm |
Features
Forward and Reverse rotation switches
Iron weight increases the weight and improves the grinding
efficiency.
Zinc alloy tap, solid and good quality, for wet grinding and
polishing
Product Details
1, High strength aluminumalloy(gear box, solidstrong, good for
heatradiation)
When the gears work for a few hours, the enclosed gear box will be
get pressed and hot. The aluminum alloy is good for hard radiation
2, Super motor and inverter(assure the electricitysafety and
quality)
Motor and inverter are tested many times and long time s working,
in which the quality is highly assured
3, The control panel is easto understand and operate(you could call
it " foolishoperation)
4, The direction of buttondisk can be bothclockwise
andanticlockwise
because diamond pad would be uneven if it always runs in one
direction.Unevenness will waste diamond

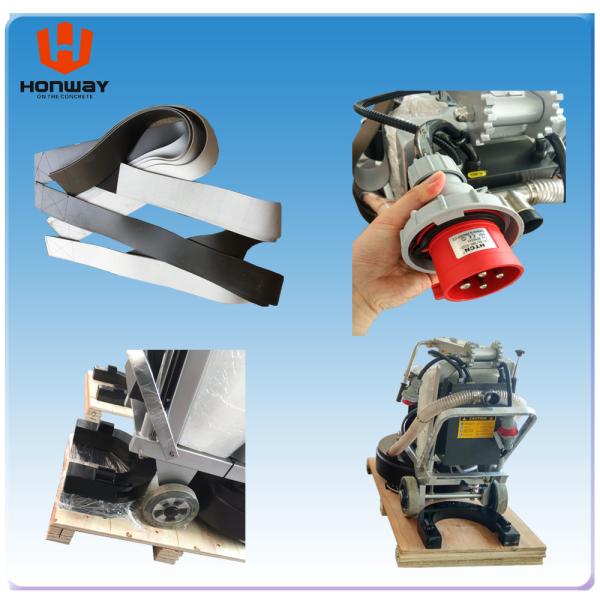

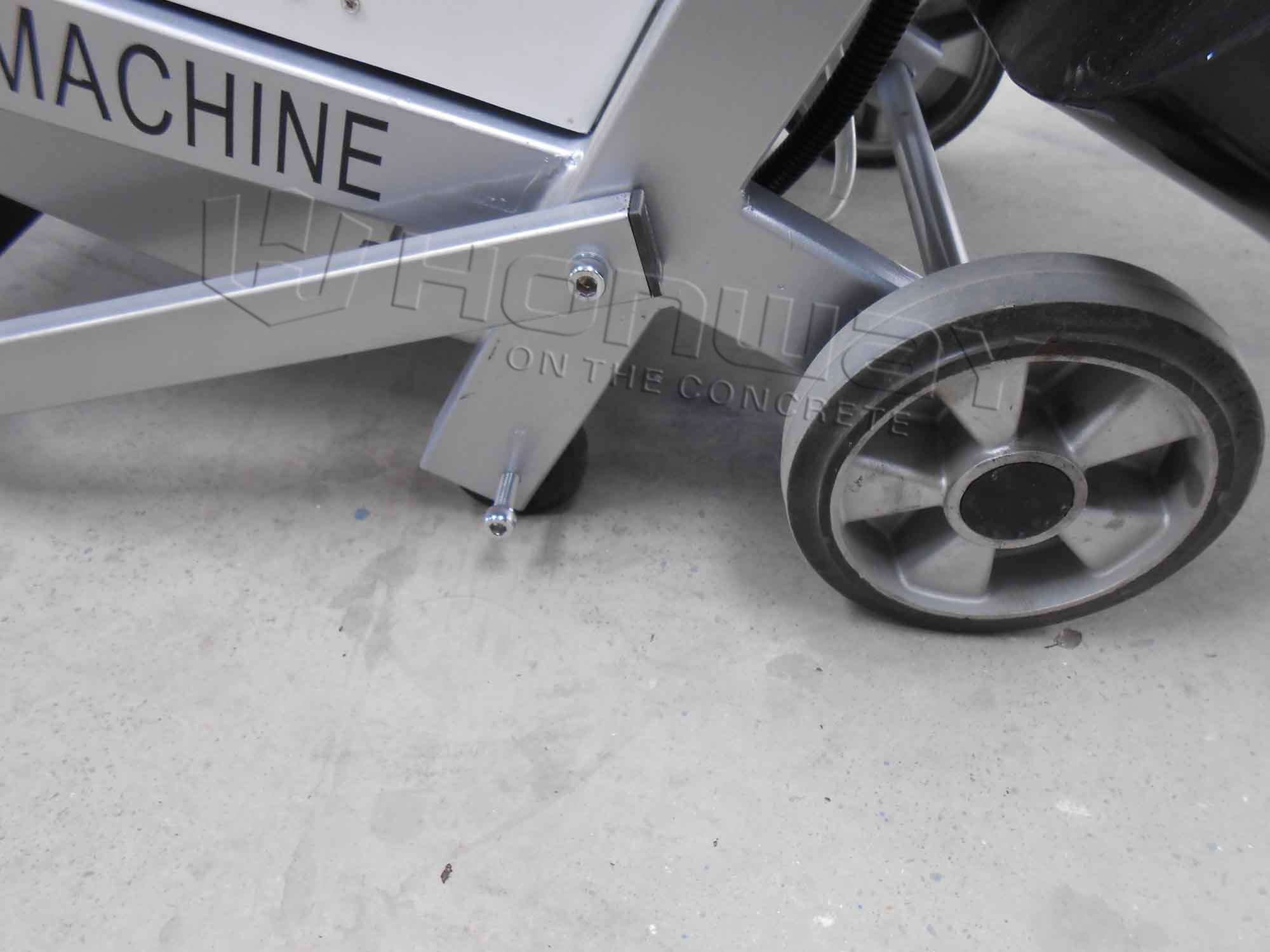

Closer Look
After Sell Service
- One year of warranty for machine.
- We always supply the consumables.
- We always supply the spare parts for all the old models.
- The spare parts can be sent out immediately at any time, delivered
by DHL.
- The CD and operation manual is sent with machine to guide the
installation process works and repair problems.
- All machines are tested, and the testing record will be kept,
before it leaves factory.
- If the customers visit our factory, we could provide the training
lessons.
FAQ
Q: Where is your factory?
A: It is located in Changsha, Hunan province. Welcome you come to our
factory and produce process at any time.
Q: What kind of machine you supply?
A: Concrete grinding machine, concrete scarifying machine, diamond
tools.
Q: What voltage of your machine?
A: 380V three phase,220V three phase and 220V single phase.
Q: What certificates of your machine?
A: 3C CE SGS
