Four Planetary Grinding Plates Concrete Floor Grinding Machine
650mm Width

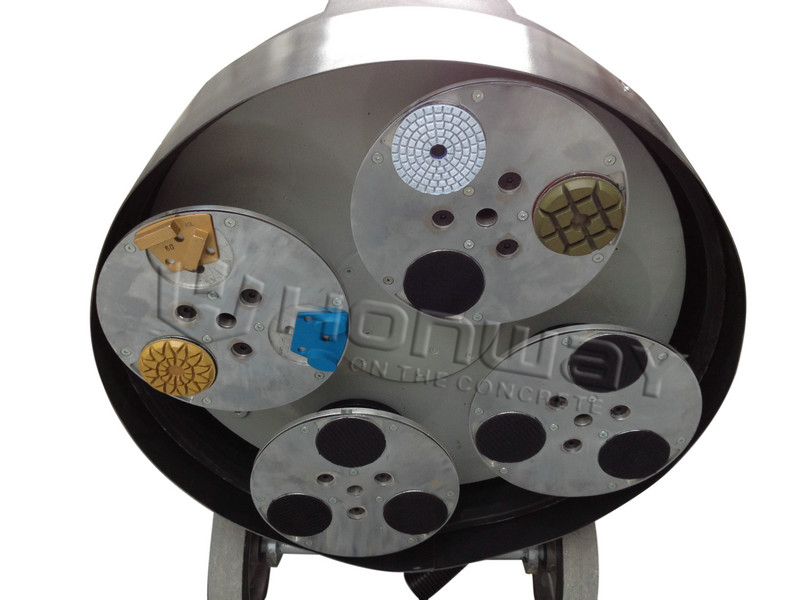

The four planetary heads demand for higher technique; in our
factory, the four heads rotate toward two direction; if so, the
centrifugal force will be diminished; the machine is even when it
works, and the operation will be comfortable; but in other
factories, the four heads rotate toward one direction; the
centrifugal force is big; and the machine would a bit lean to one
side, and the operation will be a bit uncomfortable and hard; ''4
planetary heads'' is good design, but if the 4 heads rotate toward
to one direction, it is not a real '' 4 planetary heads'';
Parameters
| Voltage | 220-240V ,1P/3phrase | 380V-440V, 3phrase |
| Frequency | 50/60HZ | 50/60HZ |
| Current | 26.7A | 15.5A |
| Power Output | 10hp(7.5KW) | 10hp(7.5KW) |
| Inverter power | 15hp(11KW) | 15hp(11KW) |
| Motor speed | 300-1800rpm | 300-1800rpm |
| Grinding width | 650mm | 650mm |
| Disc Dianeter | 250mm*4plate | 250mm*4plate |
| N.W | 270KG | 270KG |
| Water Tank | 30L | 30L |
| Dimension | 970*650*950mm | 970*650*950mm |
Features

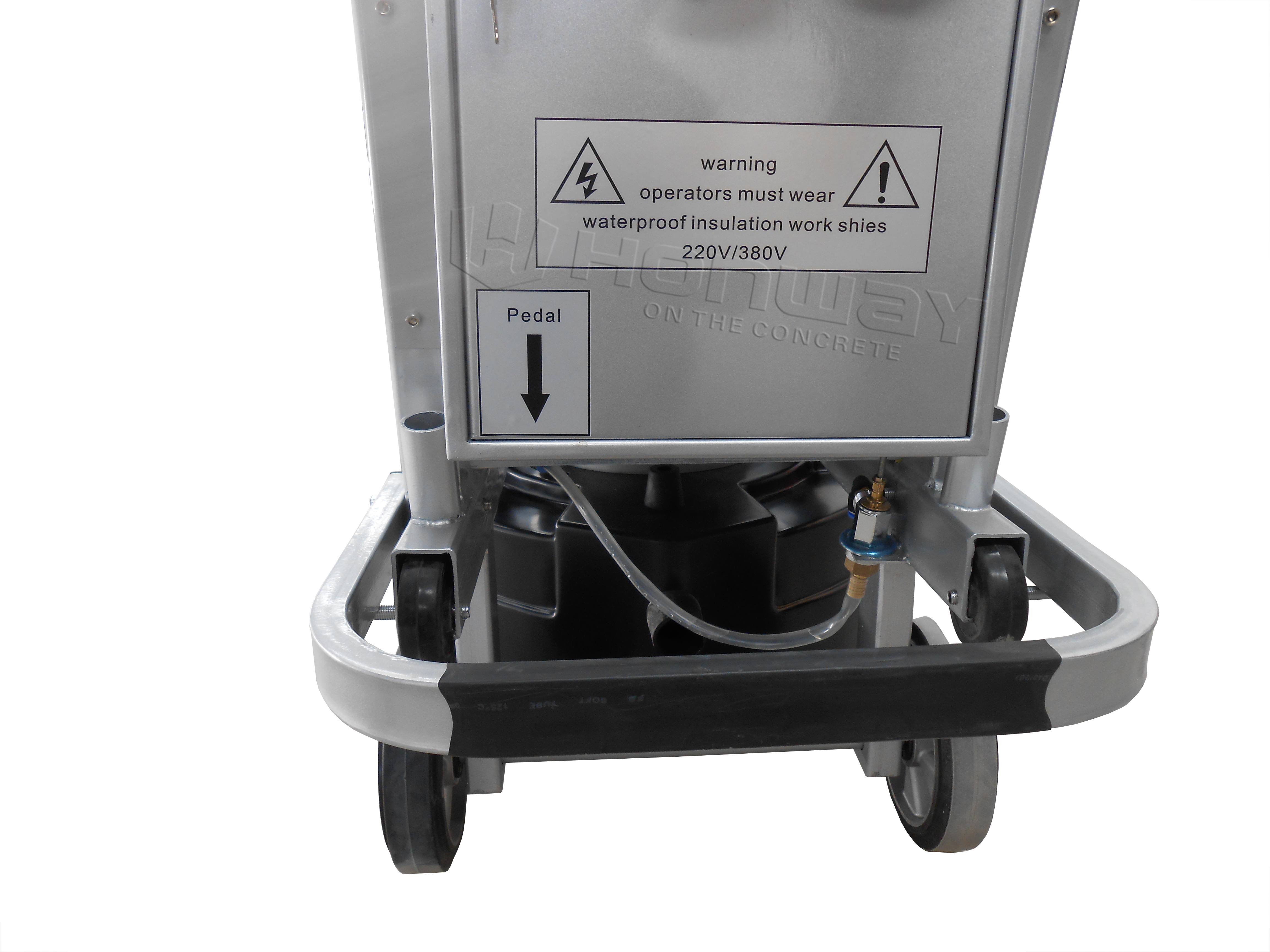

The water filling nozzle is designed as leak proof.
IP67 waterproof dustproof power plug is more secure
The floor grinder handle can be rotated by 360 degrees.
Gear box and motor cover are made of aluminum ally that brings long
lifespan, steadiness.
Closer Look
Company introduction
Changsha Honway Machinery Co., Ltd is the Professional manufacturer
for floor scarifying & grinding & polishing machine in China.
1, Well equipped facilities for mechanical process.
2, Strict quality control throughout the stages of production.
3, A team of experienced technicians and workers.
4, All products are CE certified, comply with international
standard.
5, Covering a production area of 1000 square meter.
After Sell Service
- One year of warranty for machine.
- Honway always store the spare parts of old models, in case that the
machine needs repair in future.
- The spare parts can be sent out immediately at any time, delivered
by DHL.
- Honway will service you and your machines for years.
- All gear boxes are tested 48 hours before it leaves factory.
- If the customers visit our factory, we could provide the training
lessons.
- We always supply the spare parts for all the old models.
FAQ
Q: If your machine can be customized?
A: Yes, we can design and produce according to client’s requirements.
Q: What is your payment method?
A: 100% or 50% T/T advance, the balance should be paid before
shipment. (for old customers, we could discuss again)
Q: How about your delivery time?
A: 7~20 days (according to the order quantity)
