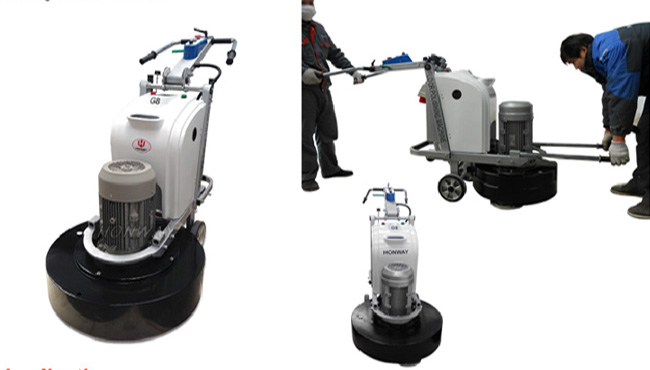

HW-G8,15hp motor, grinding width 750mm, for 220v or 380v. It offers
high performance and efficiency. Powerful motor 15hp and large
grinding area make it a high efficient machine for large area floor
project, saving time and labor.
Removing painting, coating, epoxy and glue on floors.
Parameters:
| Voltage | 220-240V ,1P/3phrase | 380V-440V, 3phrase |
| Frequency | 50/60HZ | 50/60HZ |
| Current | 39.2A | 22.6A |
| Power Output | 15hp(11KW) | 15hp(11KW) |
| Inverter power | 15hp(11KW) | 15hp(11KW) |
| Motor speed | 300-1600rpm | 300-1600rpm |
| Grinding width | 750mm | 750mm |
| Disc Dianeter | 250mm*3plate | 250mm*3plate |
| N.W | 390KG | 390KG |
| Water Tank | 30L | 30L |
| Dimension | 970*750*1050mm | 970*750*1050mm |
Features
Double oil sealing prevent the oil leak
Stainless steel digital control board allows you to check the panel
more easy.
Gearbox performance tuning excellent, with high precision
Motor Speed is adjustable and do dry & wet grind.
Contrast
gear box is smooth and clean exquisite craftwork
gear box is coars even the dregs are left by parts processing
Bearing is NSK, made in Japan, famous bearing name.
Chinese bearings, the quality is not as goodas that of Japan brand
Famous brand TTO seal made in Taiwan
No brand. notimported seal
Poly urethane rubber pads, the flexibility is adjusted many times,
for long life
Common material. theflexibility is not enough, easy to break
High strengthsteel. hard, solid
Common strengthsteel. even rust
High grade gear hobbin high-accuration
Not high grade gear hobbing,not high-accuration
Closer Look
Production Flow
Company introduction
Changsha Honway Machinery Co., Ltd is the professional manufacturer
for floor scarifying & grinding & polishing machine in China. We
are located in Changsha city which is well known as the capital of
construction machinery in China. This city has the abundant supply
of machinery engineers, workers, technique, workcraft, etc. Our
company develops here and builds up as a manufacturing the machines
for ‘Concrete Superflat floor’.
After Sell Service
- One year of warranty for machine.
- We always supply the consumables.
- We always supply the spare parts for all the old models.
- The spare parts can be sent out immediately at any time, delivered
by DHL.
- The CD and operation manual is sent with machine to guide the
installation process works and repair problems.
- All machines are tested, and the testing record will be kept,
before it leaves factory.
- If the customers visit our factory, we could provide the training
lessons.
FAQ
Q: Where is your factory?
A: It is located in Changsha, Hunan province. Welcome you come to our
factory and produce process at any time.
Q: What kind of machine you supply?
A: Concrete grinding machine, concrete scarifying machine, diamond
tools.
Q: What voltage of your machine?
A: 380V three phase,220V three phase and 220V single phase.
Q: What certificates of your machine?
A: 3C CE SGS
