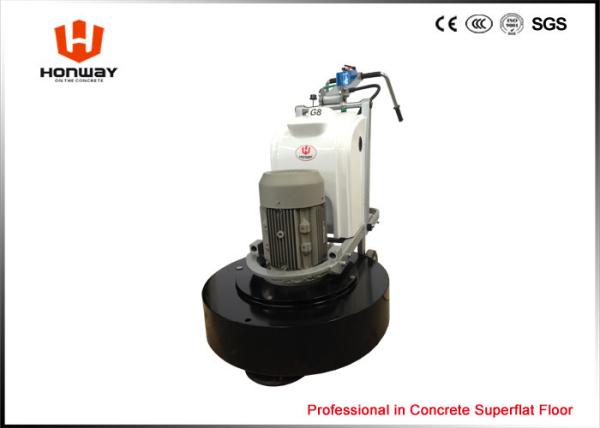

G8 is 750mm, 15hp, for 220v or 380v, four heads planetary design.
Make you work more 30%-40% efficient and save labor. Four grinding
plates with 9 pieces of grinding heads, auto rotation and turnover
grinding for smooth operation and high efficiency.
It is not only applied for concrete, but also for terrazzo, marble
and granite floor.
ideal for smoothing rough concrete finishes which is caused by rain
splatter and poor toweling.
Parameters:
| Voltage | 220-240V ,1P/3phrase | 380V-440V, 3phrase |
| Frequency | 50/60HZ | 50/60HZ |
| Current | 39.2A | 22.6A |
| Power Output | 15hp(11KW) | 15hp(11KW) |
| Inverter power | 15hp(11KW) | 15hp(11KW) |
| Motor speed | 300-1600rpm | 300-1600rpm |
| Grinding width | 750mm | 750mm |
| Disc Dianeter | 250mm*3plate | 250mm*3plate |
| N.W | 390KG | 390KG |
| Water Tank | 30L | 30L |
| Dimension | 970*750*1050mm | 970*750*1050mm |
Features
O ring is high quality, to prevent leak oil
Aluminum alloy gearbox, which is thicker than others in the market
FWD / REV operation with variable speed control
Double oil sealing system stop oil leak
Product Details
5,The direction of buttondisk can be bothclockwise andanticlockwise
because diamond pad would be uneven if it always runs in one
direction.Unevenness will waste diamond
Closer Look
Production Flow
Company introduction
Changsha Honway Machinery Co., Ltd is the professional manufacturer
for floor scarifying & grinding & polishing machine in China. We
are located in Changsha city which is well known as the capital of
construction machinery in China. This city has the abundant supply
of machinery engineers, workers, technique, workcraft, etc. Our
company develops here and builds up as a manufacturing the machines
for ‘Concrete Superflat floor’.
After Sell Service
- One year of warranty for machine.
- We always supply the consumables.
- We always supply the spare parts for all the old models.
- The spare parts can be sent out immediately at any time, delivered
by DHL.
- The CD and operation manual is sent with machine to guide the
installation process works and repair problems.
- All machines are tested, and the testing record will be kept,
before it leaves factory.
- If the customers visit our factory, we could provide the training
lessons.
FAQ
Q: Where is your factory?
A: It is located in Changsha, Hunan province. Welcome you come to our
factory and produce process at any time.
Q: What kind of machine you supply?
A: Concrete grinding machine, concrete scarifying machine, diamond
tools.
Q: What voltage of your machine?
A: 380V three phase,220V three phase and 220V single phase.
Q: What certificates of your machine?
A: 3C CE SGS
